100% Digital HDMI output for your N64 by PixelFX.co
Availability: PixelFX Store

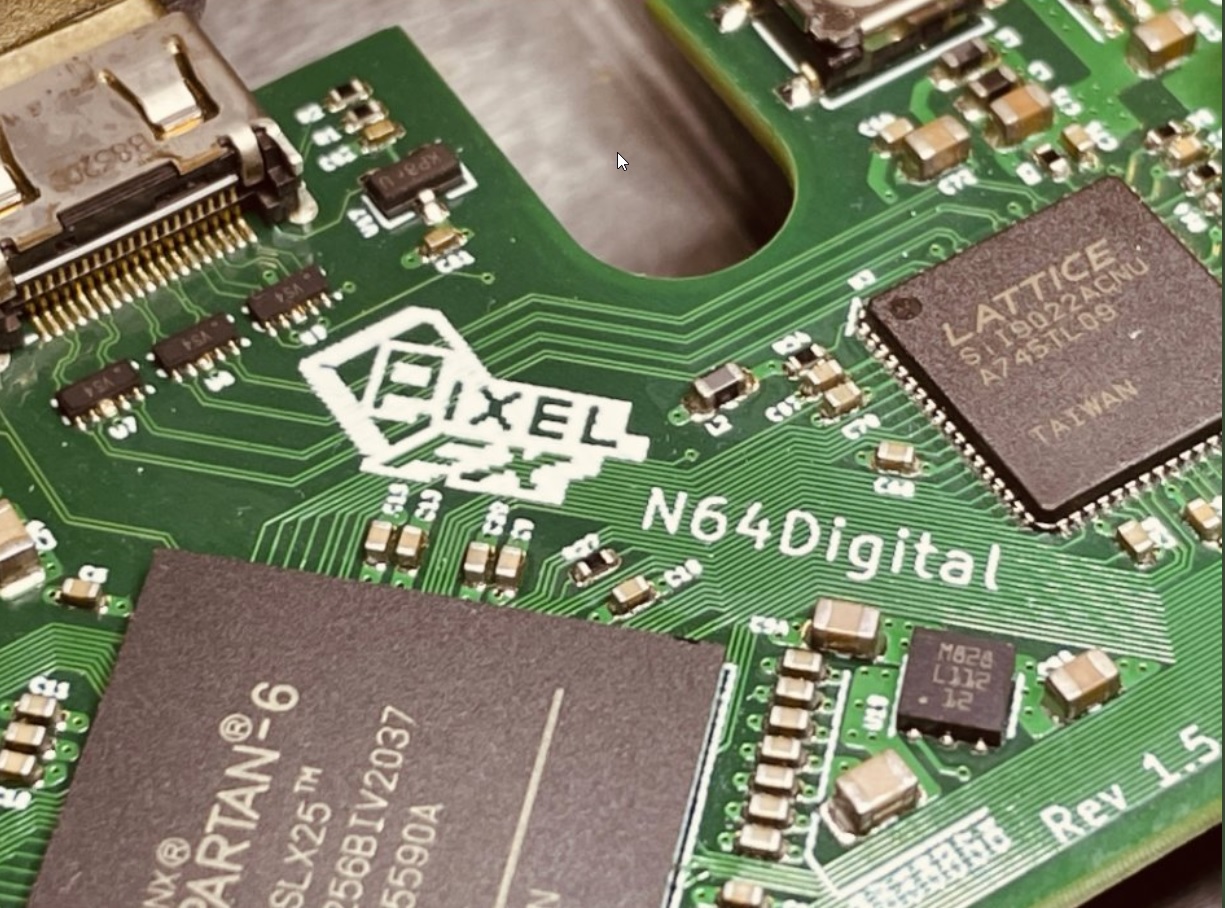

N64Digital is a digitial to digitial HDMI output mod for the Nintendo 64.
It simultaneously outputs analog RGB/YPbPr through the multiout.
Compatible N64 models
N64Digital is compatible with all N64 models. Pikachu models will need a spacer.
FPGA with 24K LE, 936 kBit BRAM and 38 DSPs with enough room for future enhancements.
ESP32 for high level system management and WiFi updates.
Output Resolutions
NTSC (60Hz):
240p
480p
720p
960p
1080p
1200p
PAL (50Hz):
288p
576p
720p
960p
1080p
1200p
Output Modes
60hz fully buffered mode
Ultra low lag direct mode
Available with all output resolutions and zoom sizes.
Supports instant progressive/interlaced switching.
Built in Video DAC
For RGB/YPbPr output through the N64 multi output.
High quality polyphase scaler
Fully customizable zoom/scaling.
Deblur
Advanced smoothing filters
Gamma correction
Bob or weave de-interlacing
WiFi firmware updates
New unbrickable rescue system.
Auto-download new updates and install when needed.
In game reset
Firmware v2.0 (Post-Launch)
Per game settings via game ID system
Tool-assisted speedrun (TAS) support
INSTALLATION OF THE KIT (No Cut 3D Printed Holder NOT included) = 60 Euro
INSTALLATION OF THE KIT (No Cut 3D Printed Holder included) = 70 Euro
Compatible with all N64 models
Supported Resolutions1080i60 (1920×1080 interlaced)
720p60 (1280×720 progressive, Default Mode)
480p60 (720×480 progressive)
240p60 (1440×240 progressive, use with component converter for PVM/CRT screens)
Scaling ModesInteger 1:1 PAR (Pixel Aspect Ratio)
Full Screen non-Linear
Non-integer linear scaling (Default scaling option)
Overscan for All Scaling Modes
VI Deblur
Image Brightness Control
3 Pixel Filter modes
3 Scanline Modes (Simple and Hybrid)
Settings saving
PLEASE READ:This mod outputs the digital video signal directly from the on-board FPGA. 720p mode is compatible with almost all devices we tested, however, 480p and 1080i are auxiliary modes that may have issues on some devices such as audio or graphical glitches.
240p mode is to be used with non-scaling HDMI to component adapters for CRTs and PVMs. Component adapters that have an internal image scaler will present issues with with 240p mode specifically. Component adapter must also support 480i input, 480p support only does not suffice for 240p mode. These compatible converters seem to be in short supply at the moment, but we will post a link here to a suitable converter when a tested and reliable source is found.
INSTALL OF THE KIT = 60 euro
The N64 doesn't output RGB video, only encoded composite video and s-video is available on the A/V output port.
It's best to use RGB video for the best looking picture.
This board can be installed into any model of Nintendo 64.

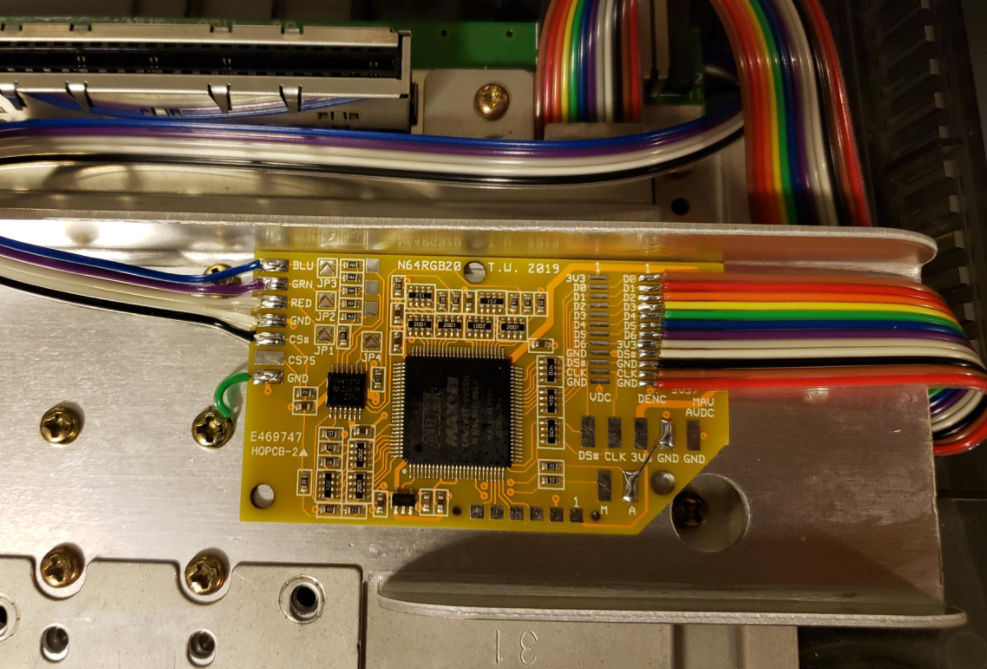

Digital signal from the from the graphics processor enter one side of the N64RGB and analogue RGB video comes out the other side.
Features
Compatible with all models and revisions of N64 hardware, PAL and NTSC
Flashed with latest Borti4938 Swithless Firmware:
Features Enabled/Disabled using Controller Button Combination:
- Enable/Disable deblur: Gives Games a Sharper Pixel Look
- Press Z + Start + R + C-le/C-Ri- Enable/Disable 15bit Colour Mode
- Z + Start + R + C-dw/C-up
- Short and Long Reset Ideal for accessing Flash cart Menu
- Z + Start + R + A + B
N64 RGB KIT= 50 euro
INSTALL OF THE KIT = 45 euro
!!! Please note i'm not reselling the 'kit' , it is only available with install included !!!
UltraHDMI is designed to connect to modern TVs and monitors. It generates several different resolutions, and like all the other options, can be configured with the on-screen menu.
Video: 60hz and 50hz modes
1080p
720p
640x480, 720x576, 1600x1200
Audio: 48KHz, 16bit digital PCM
All the settings are configurable with an on-screen menu overlay that can be accessed during a game with a button combo.
Every aspect of operation is fully configurable. Just want to play games? It works fine from the get go. Power users can tweak every setting to their liking.
Optionally, it can apply a set of retro filters to make it "feel" more like a tube TV: scanline bleed, nonlinear brightness curve, HV anode sag...
No matter what processing and features you've turned on, lag averages 1 frame (16ms), and optionally can be reduced to a lightning-fast 1ms with a special Zero Lag mode compatible with many TVs.
Installation is a bit fiddly
FINAL DETAILS
UltraHDMI cannot add more detail or resolution than the N64 already generates. It can't fix blurry textures, or add polygon detail.
What you will get is a pixel perfect image of what the game produces, before it got smeared into analog TV goo.
Use both plugs at once
COMPATIBILITY
UltraHDMI works in all revisions of Nintendo 64s produced, with only minor install differences.
Installation does not affect the console's original video output, and both can be used at the same time. HW2 brings analog support which routes RGB/YPbPr component video to the original MultiAV port.
INSTALL OF THE KIT = 60 euro

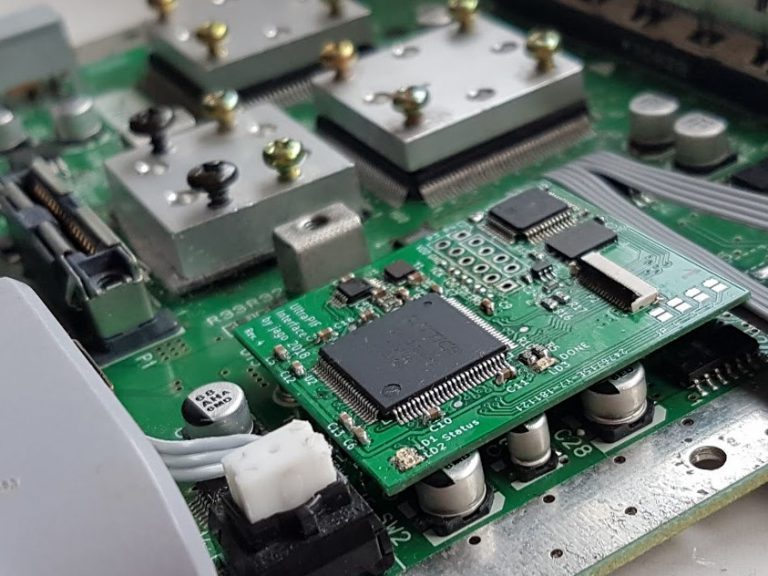

The UltraPIF, a Lattice MachXO2-FPGA based board, replicates all of the functions of the original N64 'PIF'.
It completely bypasses the anti-piracy CIC check process thus unlocks the region barrier set by Nintendo.
To compensate for the difference of both NTSC and PAL consoles video clocks, the UltraPIF comes with an integrated clock generator/oscillator.
This means that PAL N64 owners can now enjoy NTSC games at 60hz and NTSC N64 owners can experience PAL games at 50hz.
ULTRA PIF KIT + RGB LED = 88 euro
INSTALL OF THE KIT = 40 euro
!!! Please note i'm not reselling the 'kit' , it is only available with install included !!!
Total Recap , Motherboard & PSU
3D Printed Universal Cart Slot ( JPN / USA / EU )
